Buy AC Voltage Meter Round LED Digital 60V to 500V at Best Price in Bangladesh

পণ্য সারসংক্ষেপ (Summary)

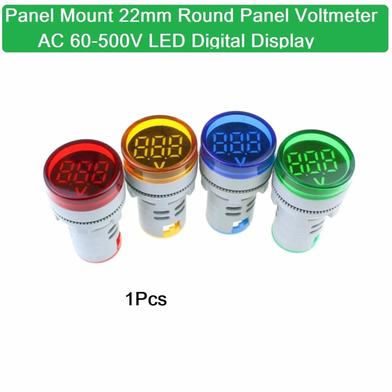

The AD16-22DSV Round LED Digital AC Voltmeter monitors electrical circuits between 60V and 500V. This 22mm panel mount device displays real-time voltage data with ±0.5% accuracy. Under standard industrial settings, it mounts directly into distribution boards or control panels. Key Features Digital LED Display: Brightness levels ≥100 cd/m² provide clear visibility. Numbers remain readable even under harsh overhead lighting. 22mm Panel Mount: Dimensions measure 22x50.5 mm for standard hole integration. Mounts directly into existing 22mm cutouts without modification. Flame-Retardant Housing: Built with high-grade ABS material for heat resistance. Casing prevents ignition during local electrical surges or heat. 30,000-Hour Life: Internal components support continuous operation for over three years. Reduces the need for frequent replacements in factories. IP65 Protection Rating: Sealed front face resists dust and water splashes. Operates during high humidity or light spray. Low Power Draw: Current consumption stays under 20 mA during use. Avoids draining power from the monitored system. Frequently Asked Questions What is the accuracy of AD16-22DSV? This voltmeter maintains an accuracy class of ±0.5%. It provides precise readings within the 60V to 500V range. How to install 22mm panel voltmeter? Insert the meter into a 22mm diameter hole and tighten the rear nut. Connect the AC supply wires directly to the screw terminals.
